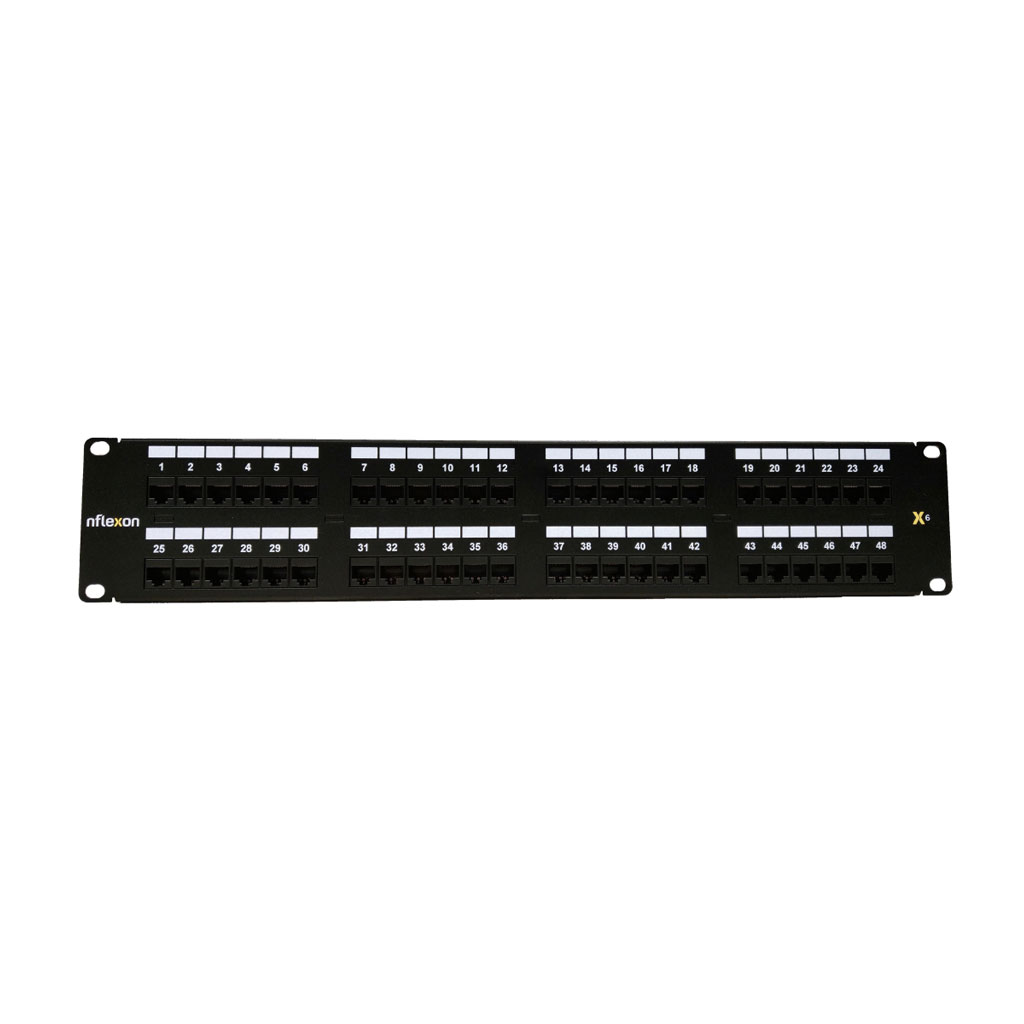

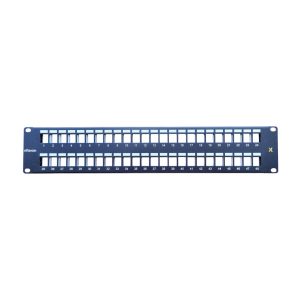

Category 6 48-Port UTP Patch Panel

Category 6 UTP patch panel is used for telecom room applications and when modular IDC termination is preferred.

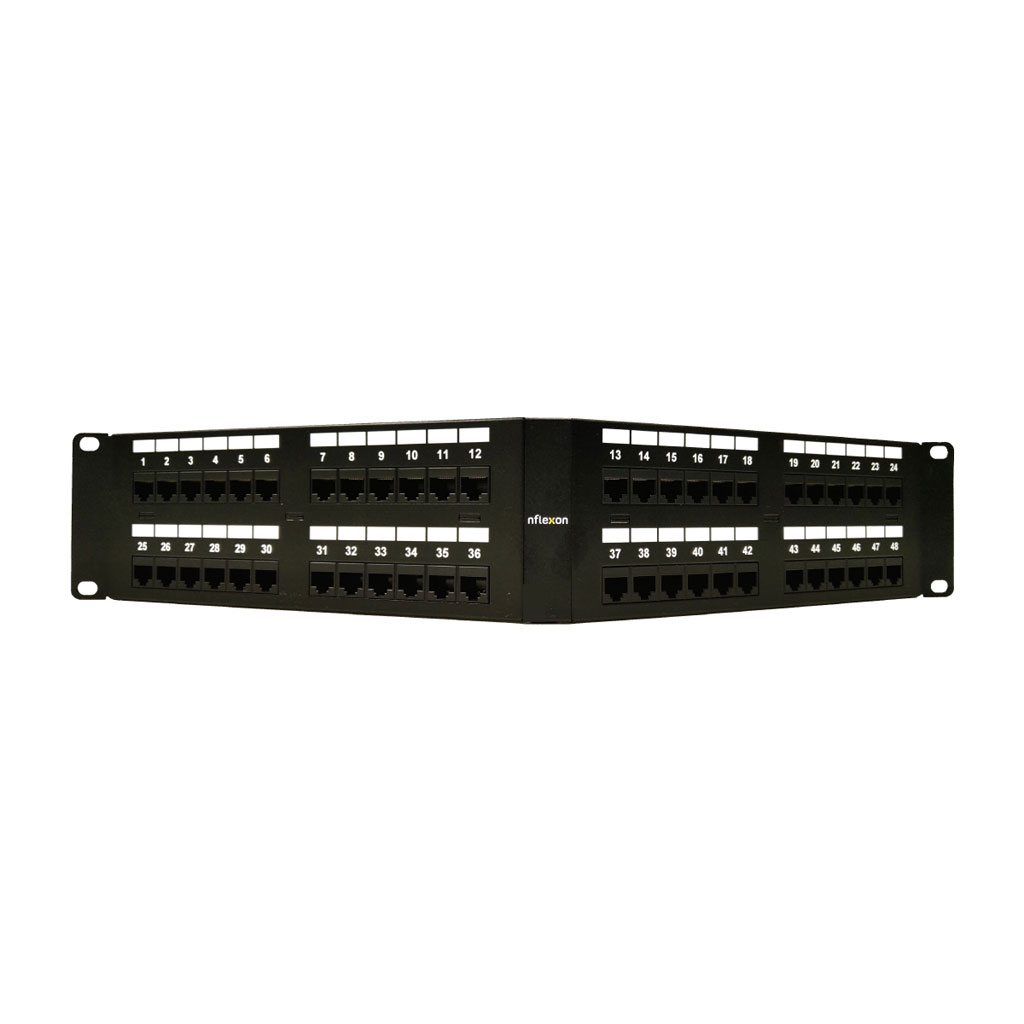

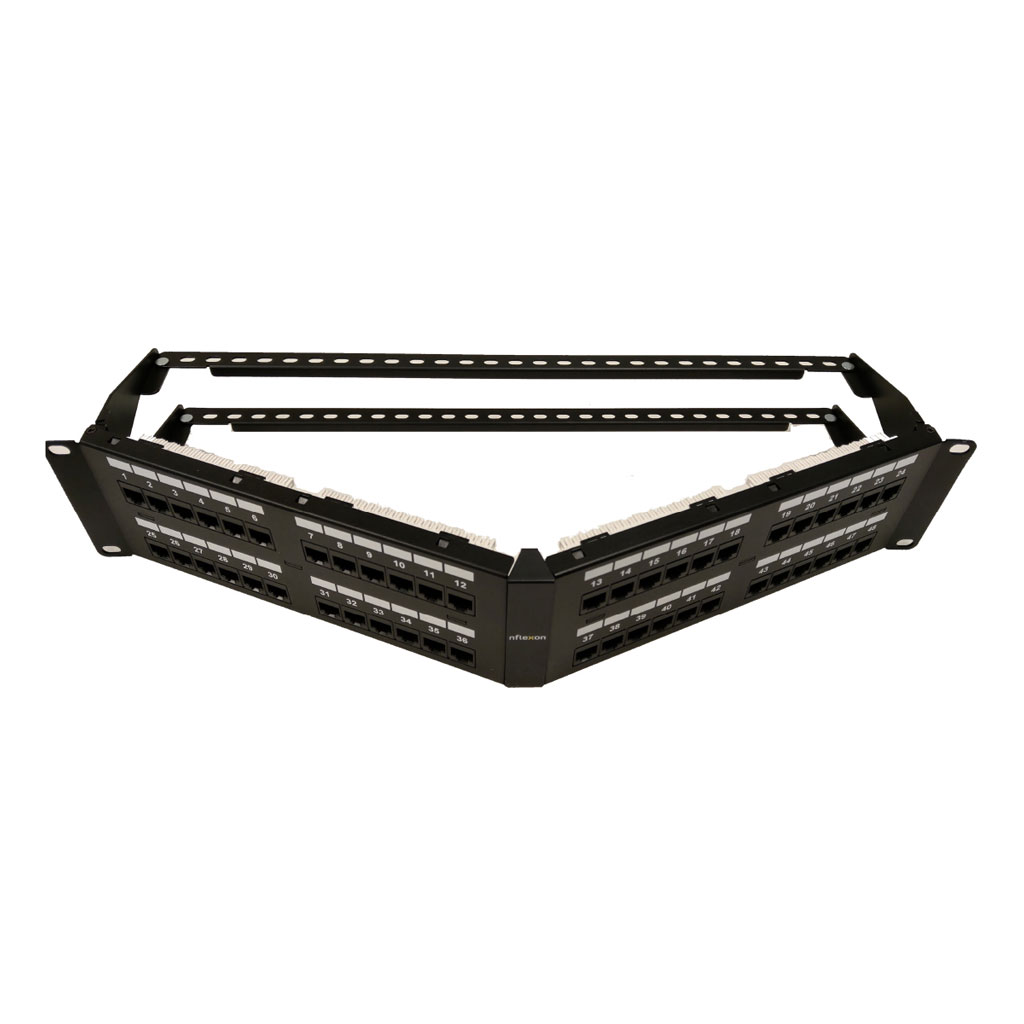

  • Available in straight and angled style
  • Mounts to standard 19″ racks and cabinets.
  • Meets ANSI/TIA-568-C.2 Category 6 requirements
  • Supports 750 mating cycles with FCC compliant plug
  • Dedicated area for write-on labels or optional adhesive labels
  • UL listed
  • RoHS compliant

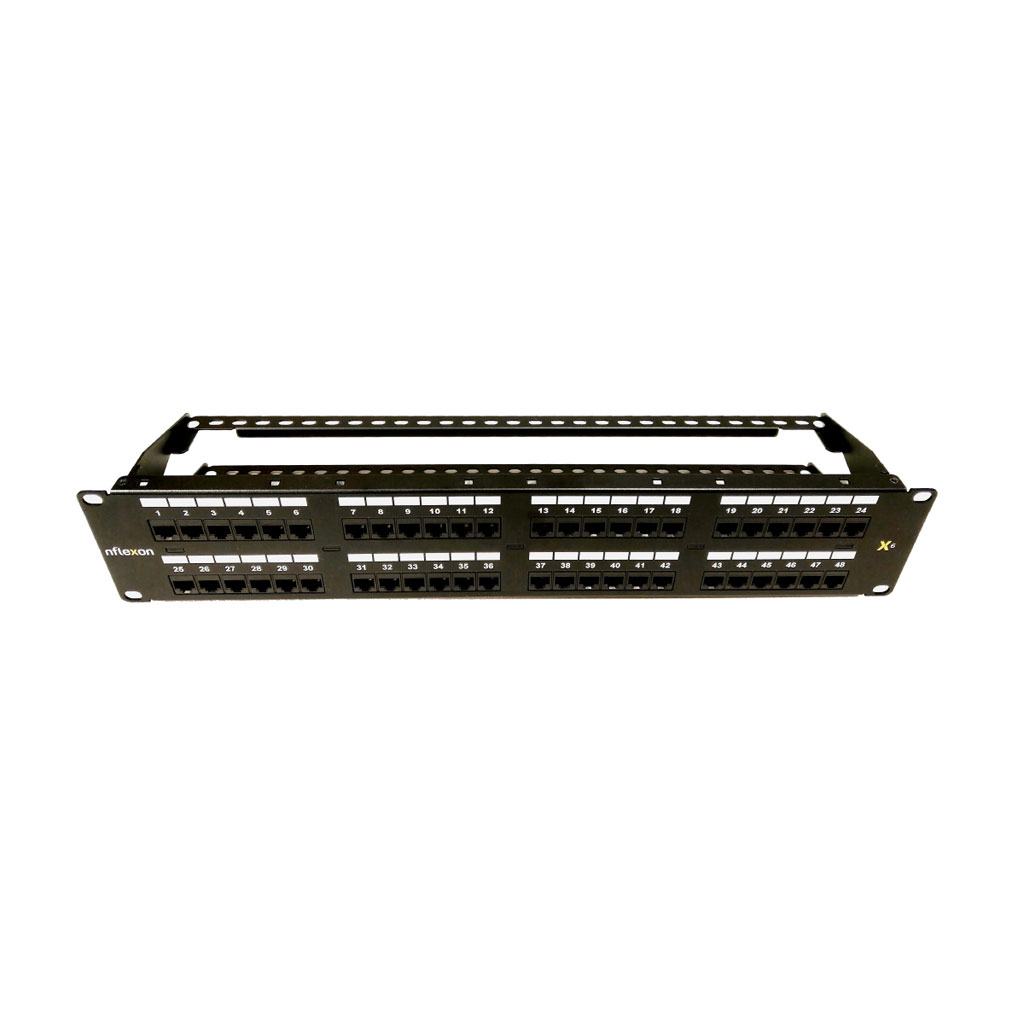

  • Cable tie bar included
Request A Quote
Request A Quote
Categories: ,

Description

Panel Frame Material: Steel
IDC Frame Material: High Impact Thermoplastic ABS UL94V-0
Contact Material: Phosphor Bronze, 50 Micro-inch Gold Plating
Contact Holder: High Impact Thermoplastic ABS UL94V-0
Operating Temperature Range: 14°F to 140°F (-10°C to 60°C)
Storage Temperature Range: -40°F to 154°F (-40°C to 68°C)
Width: 19 in (482.6 mm)
Height: 3.46 in (88 mm)
Depth: 1.01 in (25.7 mm)

Download

Category 6 48-Port UTP Patch Panel Datasheet

48 Port Category 6 Patch Panel Drawing

48 Port Category 6 Angled Patch Panel Drawing

Related products

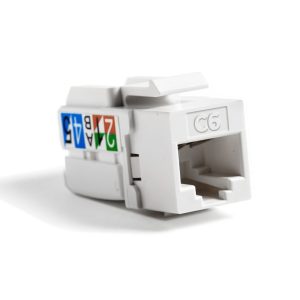

  • Category 6 UTP Keystone Jack

  • 48-Port Straight Blank Patch Panel

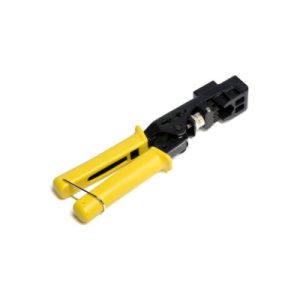

  • Termination Tool

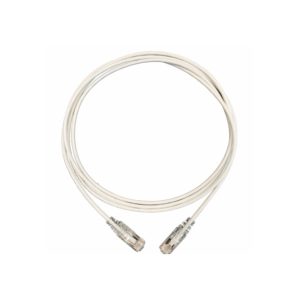

  • Category 6 UTP Small-Diameter Patch Cord
